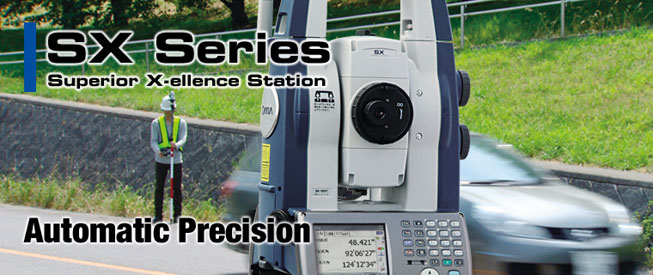

Superior X-ellence Station SX Series


Compact X-ellence Station CX Series Tradition Meets Innovation



Feature

  • Extremely Robust Auto-Tracking
  • Advanced Angle Measurement System
  • LongRange Data Communication
  • RED-tech Technology Reflectorless EDM
  • Waterproof, Rugged, and User Friendly Operation
  • MAGNET™Field On-Board Application Software

TSshield_mark_E.jpgBefore using the SX series, it is necessary to perform the user registration to activate the TSshield.Please click here and read the registration manual.

User registration before use[1,083KB]

TSshield*
The industry first! New function to protect your investment.
* This service may not be available in some areas.


Extremely Robust Auto-Tracking*

TSshield_mark_E.jpgIncorporating cutting-edge laser and image processing technologies, the SX offers extremely robust prism tracking capability that provides exemplary performance on any job site. Advanced tracking algorithms also enhance the ability to predict future prism positions, dramatically increasing tracking stability. Even with intensive reflections from a object behind the prism, or with repetitive interruptions in the line-of-sight, the SX tightly tracks a moving prism.
*For SX Auto-Tracking models.

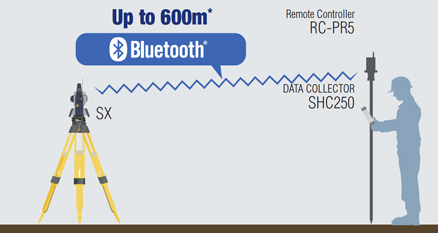

LongRange Data Communication

TSshield_mark_E.jpgThe SX series of total stations feature Bluetooth® Class1 wireless technology for reliable data communications.
All SX data is instantly available at the Bluetooth-equipped controller, in combination with RC-PR5.
*Wireless communication range may vary depending on obstruction and other environmental conditions.


RC-PR5 Remote Control System

TSshield_mark_E.jpgThe RC-PR5 On-Demand Remote Control allows for rapid prism search regardless of your position. A built-in directional sensor constantly monitors the prism movement so the SX can turn left or right whichever direction is closer.





Advanced Angle Measurement System

  • SX features SOKKIA's original absolute encoders that provide long-term reliability in any job site condition. Dual-axis compensator ensures stable measurements even when setup on uneven terrain.
  • SX-101 and SX-102 feature groundbreaking IACS (Independent Angle Calibration System) technology for extremely reliable and acucurate angle measurement.


RED-tech Technology Reflectorless EDM

  • Fast distance measurement of 0.9s regardless of object.
  • SOKKIA's traditional pinpoint precision in reflectorless distance measurement.
  • Reflectorless operation from 30cm to 1000m*.
  • Coaxial EDM and laser-pointer beams provide fast and accurate aiming.
  • Ensures accuracy even with reflective sheets.
*With Kodak Gray Card white side (90% reflective). Brightness level at object surface: <=500 lx.


Waterproof, Rugged, and User Friendly Operation

  • IP65 dustproof / waterproof rating.
  • Metal chassis and heavy duty handle.
  • Standard usage temperature range -20 to +50°C.



MAGNET™

●Cloud-based Solutions for Precise Positioning
MAGNET™ is a software family that uses the "cloud" for seamless data connection between the field and office, in Real-time, when and where you need, for data exchange, communications, asset tracking and more.

●MAGNET™ Field
Powerful on-board software that covers full functions for surveying and engineering tasks. MAGNET™ Field handles data collection, stake out, roads and coordinate geometry.

TSshield_mark_E.jpg TSshield_mark_E.jpg TSshield_mark_E.jpg

Movie

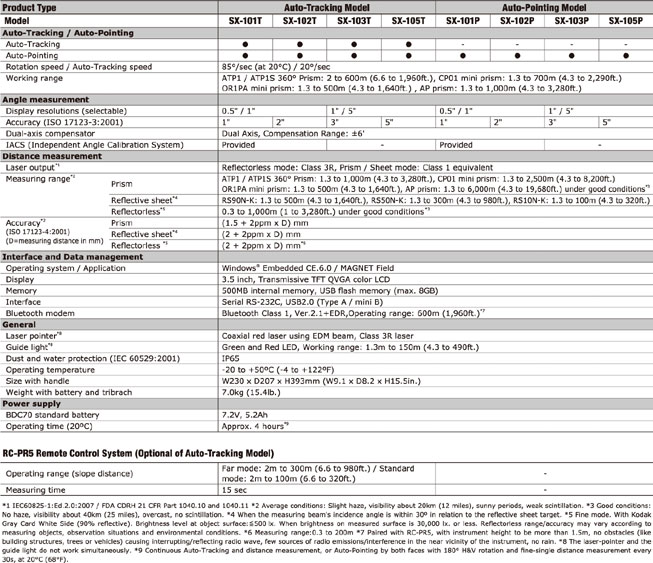

Specifications
